Description
Key Specifications
-
Power Chill Operation | Power-Airflow Dual Flaps
-
Self-Diagnosis | Anti Corrosion Treatment
-
Auto Fan Speed | Backlit Remote Controller
Overview
Detailed Specifications
GENERAL
Model Name

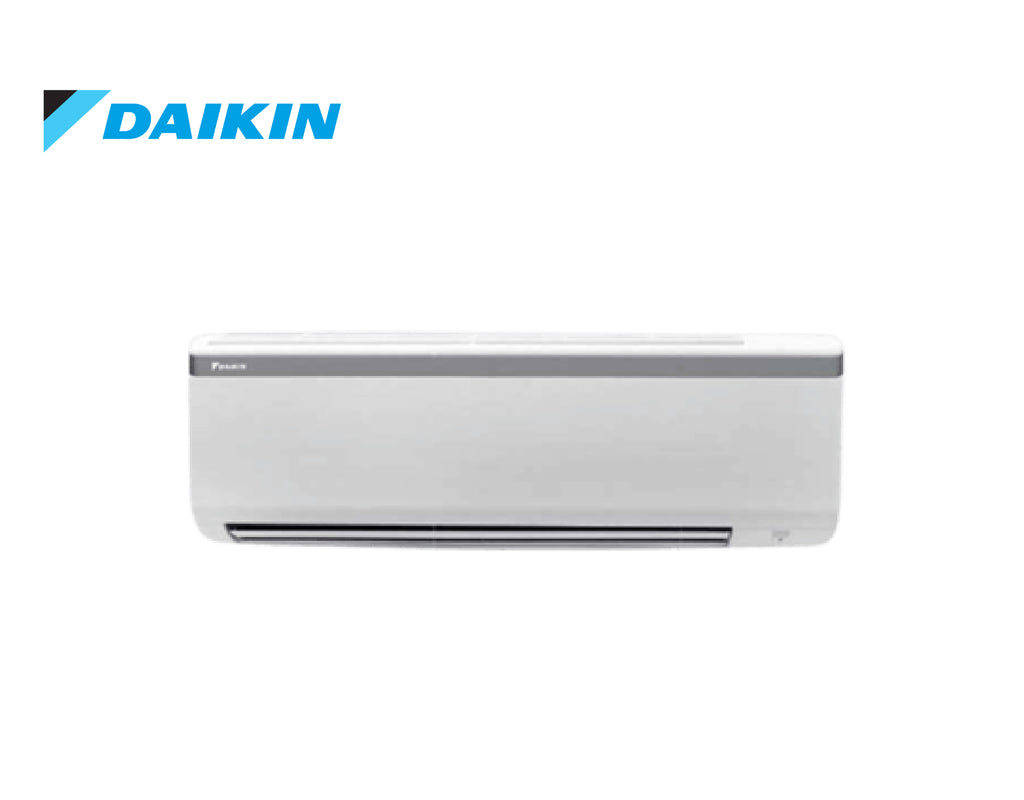

1.5 Ton 3 Star Fixed Speed Split AC
Model Number
FTL50UV16U2A
Width x Height x Depth
885 x 298 x 229 mm
Air Conditioner Technology
Fixed Speed
Type
Split AC
BEE Star Rating
3 Star
OPERATION & PERFORMANCE
Capacity in Tons
1.5 Tr
Rated ISEER
3.95 Wh/Wh
Rated Cooling Capacity (Watt)(Min~Max)
5.05kW
Cooling Capacity %
43°C (100%)
Compressor Type
Rotary Compressor
Refrigerant
R-32
Operating Temperature Range
19.4-50 C DB
Other Convenience Features
Child Lock | Coanda Airflow | DNNS Self Heal | Dry Mode Function | Econo Mode
AIR FLOW & FILTER FEATURES
AirFlow Rate (High / Medium / Low)
586 Feet /min (cfm)
Moisture Removal
1.6 Uhr (Litres/Hour)
Operation Sound
48/44/38 dBA
POWER FEATURES
Rated Voltage/Frequency/Phase
10/50Hz/230V
Rated Annual Power Consumption
989.31 kWh
Operating Current
5.73 A
INDOOR UNIT (IDU)
IDU Dimension (WxHxD)
885 x 298 x 229 mm
IDU Net Weight
11 kg
Package Dimension (WxHxD)
980 x 375 x 325 mm
IDU Gross Weight
14 kg
OUTDOOR UNIT (ODU)
Piping Length
10m (Charge-Less) | 20m (Max Length) | 10m (Max Height)
ODU Dimension (WxHxD)
845 x 595 x 300 mm
ODU Net Weight
40.5 Kg
Package Dimension (WxHxD)
1035 x 680 x 410 mm
ODU Gross Weight
47.5 Kg
DIMENSIONS
Liquid Tube Size Outer Diameter
012.7/06.4 mm
WARRANTY
Product
1 Year Manufacturing Warranty
Comprehensive
5 Years Manufacturing Warranty
PCB
NA
Compressor
5 Years Manufacturing Warranty
MANUFACTURING, PACKING AND IMPORTED INFO
Generic Name
Air Conditioners
Country of Origin
Japan
Manufactured by
Daikin Airconditioning India Pvt Ltd. Sp2-45,47,48 Industrial Estate, Neemrana, Dist Alwar, Rajasthan - 301705
Packed by
Daikin Airconditioning India Pvt Ltd. Sp2-45,47,48 Industrial Estate, Neemrana, Dist Alwar, Rajasthan - 301705
