Description
Technical Specifications
| Specification | Details |
|---|---|
| Product Title | FC318VNU- Fixed Speed Split AC 1.5 Tr 3 Star |
| Nominal Cooling Capacity (Tonnage) | 1.5 |
| Star Rating | 3 star |
| Cooling Capacity (Watt)(Min~Max) | 5350 |
| (Rated) Voltage/ Frequency/ Phase | 230 V / 50Hz / Single |
| ISEER | 3.81 |
| Address of Manufacturer | Blue Star |
| Country of Origin | BLUE STAR LIMITED, KASTURI BUILDINGS, MOHAN T ADVANI CHOWK, JAMSHEDJI TATA ROAD, CHURCHGATE, MUMBAI 400 020 |
| Air Conditioner Technology | Fixed Speed |
| Cooling Capacity (BTU/hr) | 18255 |
| Cooling Rated Power Input (Watt) | 1405 |
| Cooling Capacity (BTU/hr) (Min~Max) | 18255 |
| Electricity Consumed in 1600 Hours (Units/Year) | 1087.62 |
| Nominal Current (Cooling) (Amps) | 6.3 |
| Air Flow Volume (Wet CFM) (High/Medium/Low) | 660/515/485/430 |
| Noise Level Indoor (dB) (High/Medium/Low) | 45/41/37 |
| Moisture Removal (Litres/Hour) | 1.3 |
| Compressor Type | Rotary |
| Acoustic Jacket on Compressor | no |
| Refrigerant Quantity (kg) | 0.7 |
| Ambient Temp (Cooling) (degree C) | 52 |
| Remote | LCD Remote without Backlit |
| Night Glow Function on Remote Buttons | yes |
| Net IDU Dimension (mm) | 975 x 230 x 321 (W x D x H) |
| Input Power Supply | IDU |
| Net Weight IDU (kg) | 12 |
| Net ODU Dimensions (Width x Depth x Height) (mm) | 889 x 367 x 582 |
| Net Weight ODU (kg) | 37 |
| Noise Level Outdoor (dB) | 59 |
| Gross IDU Weight (kg) | 13.1 |
| Gross ODU Weight (kg) | 41 |
| Suction Tube Size Outer Diameter Inch (mm) | 1/2'' (12.7mm) |
| Liquid Tube Size Outer Diameter Inch (mm) | 1/4'' (6.35mm) |
| Refrigerant Additional Charge Beyond 4M (g/m) | 15 |
| Remote Battery Type | AAA |
| Features Refrigerant | R32 |
| Features Condenser Type | 100% Copper |
| Included Components | 1 each of Indoor Unit, Outdoor Unit, Copper tube (3 m), Inter Connecting wire (3.5 m), Remote, User Manual |
The AC is designed to deliver powerful cooling during extreme summers with minimum derating
Pre-set mode to instantly cool the room during extreme summers.
In this mode, the set temperature rises by 1°C, for a pre-defined period to balance a decrease in the night temperature, thus, providing the right cooling comfort that ensures comfortable sleep.
Alerts the user of any fault in the AC's operation immediately, through error display. The user can report to Blue Star authorised customer care center for quick resolution.
Turn OFF the LED display on the indoor unit by single press of a button. Enjoy uninterrupted sleep during the night.
Wide voltage range design ensures protection against unpredictable surge or fluctuations in voltage thus, safeguarding the AC.
In the Dry Mode, the AC controls humidity by removing excess moisture from the indoor air.

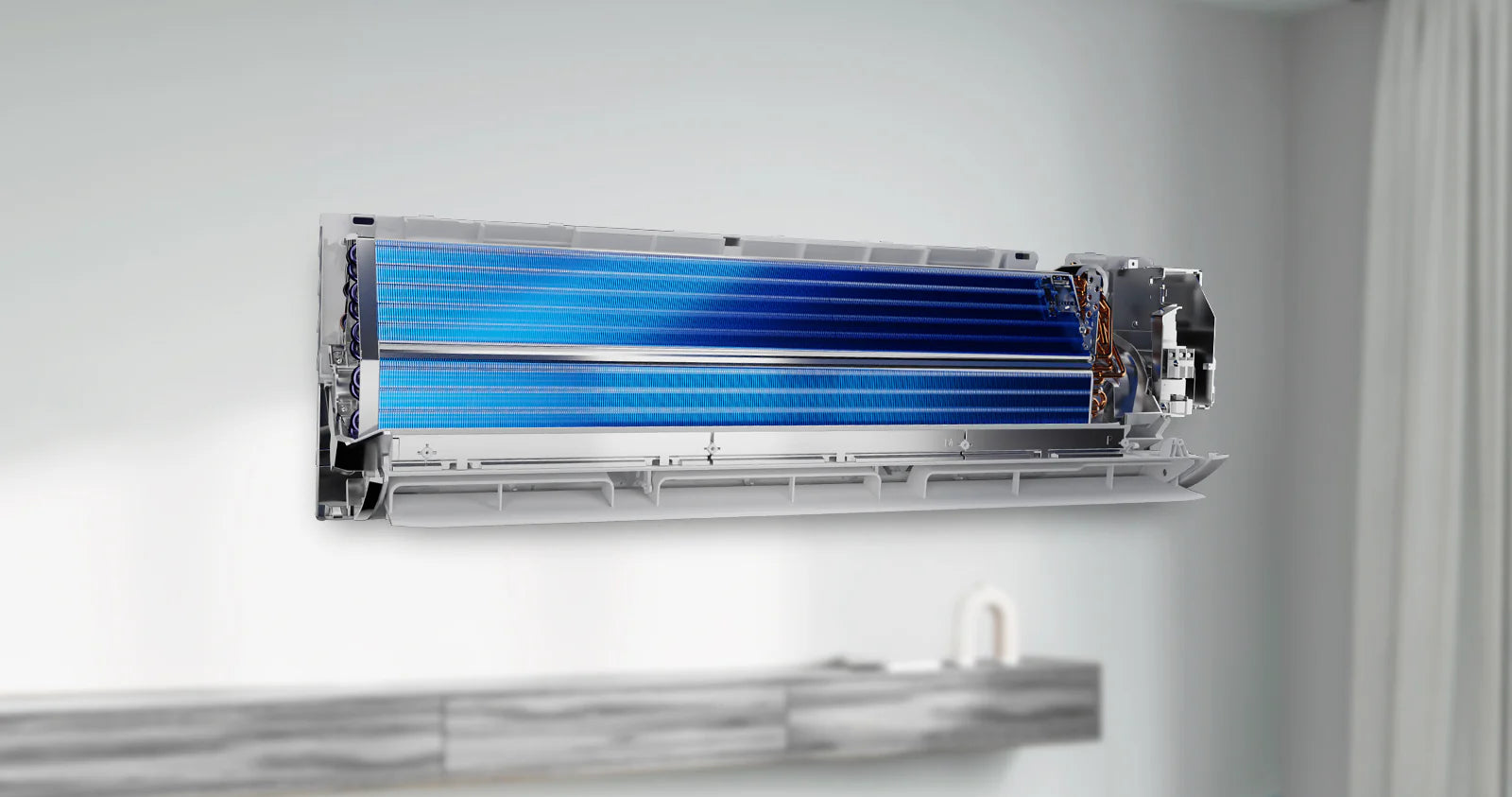

The blue fins protect the condenser and the evaporator coils from corrosion and leakage due to harsh climate, rainwater, salty air and humidity. It also enhances the efficiency and long life of the AC.
The Eco Mode helps save on your electricity bills, while giving you a comfortable cooling experience.
